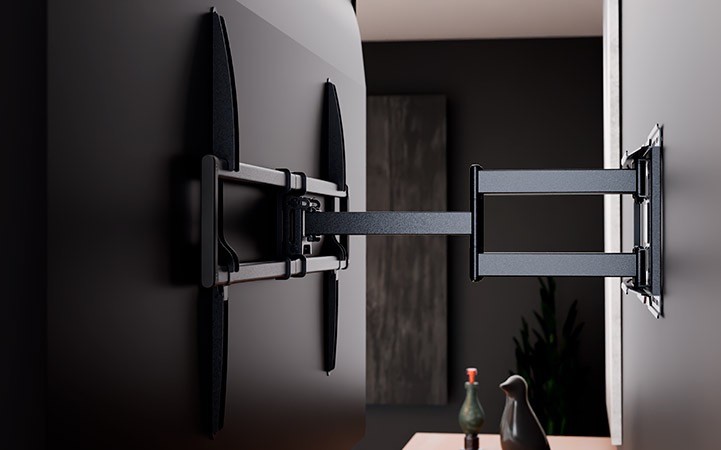

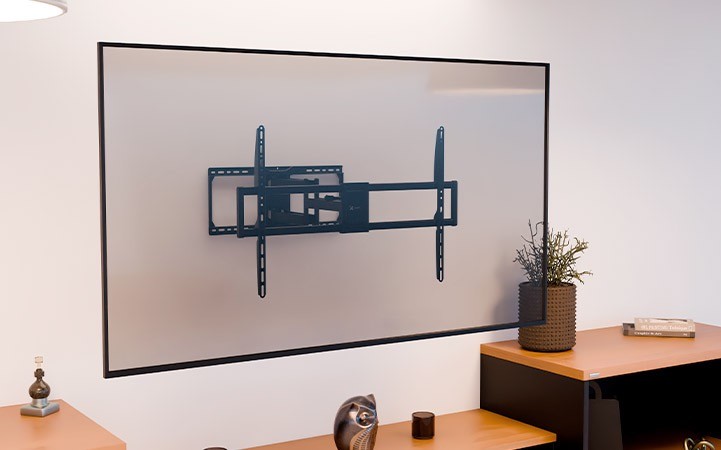

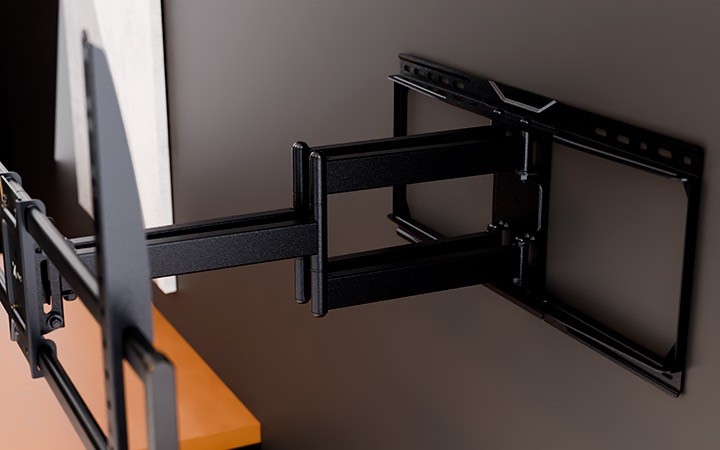

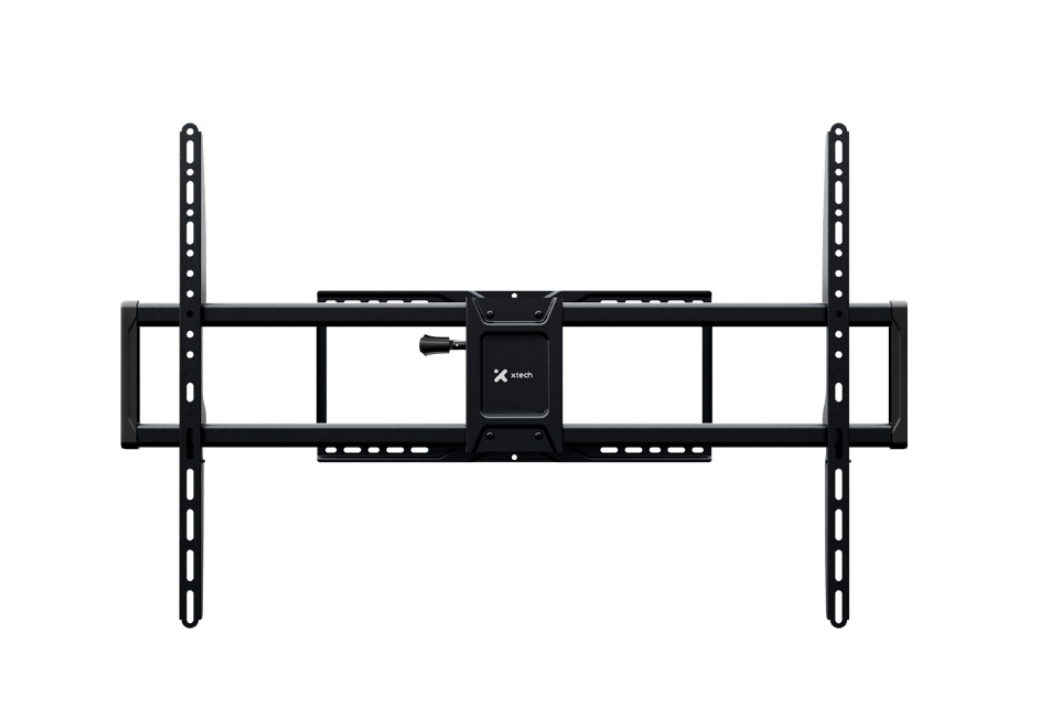

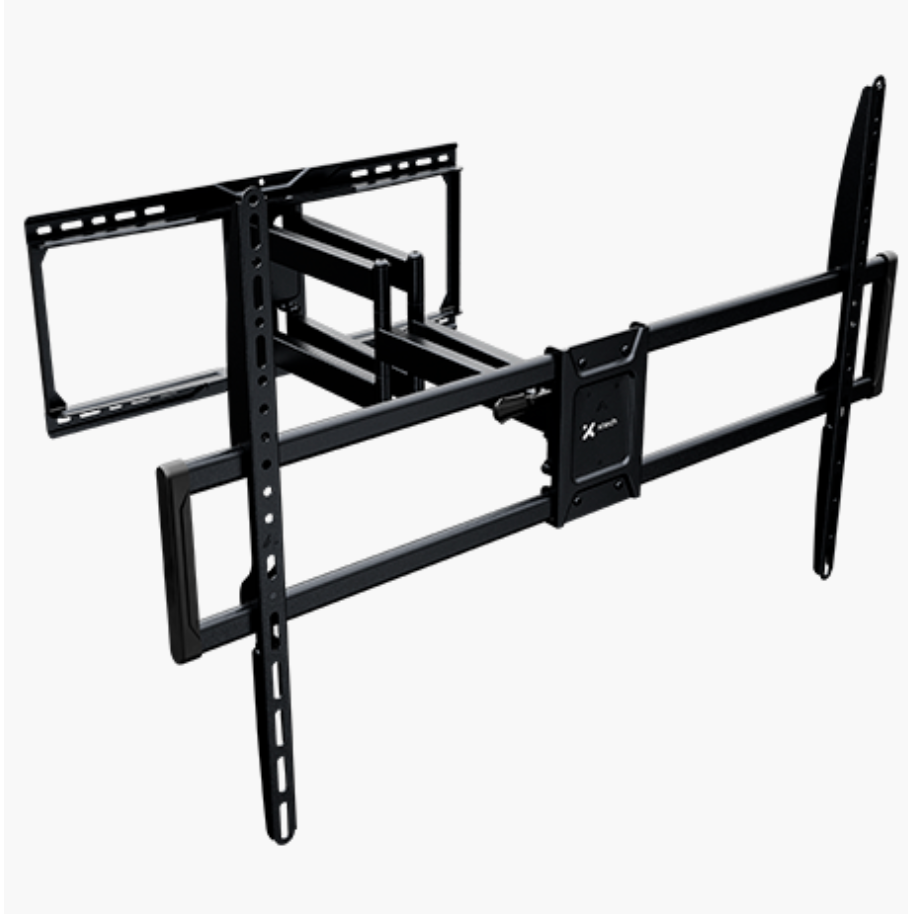

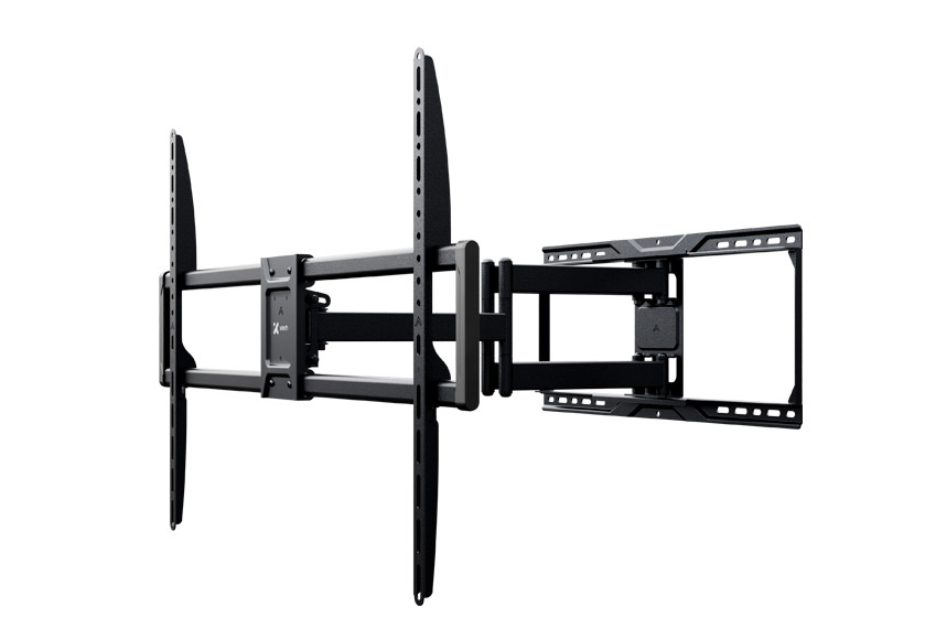

Xtech - Wall mount bracket - Tilt/Swivel 50-105" XTA-490

Highlights

Fullmotion articulated bracket with tilt and swivel to mount 50"–105" LED, LCD, and plasma displays.

VESA® compatible, suitable for flat-screen TVs and latest curved screens.

Reinforced dual arms support up to 165 lb. for a rock-solid installation.

Integrated bubble level ensures precise, perfectly aligned mounting.

Built-in cable channels and clips keep your wiring neat and hidden behind the bracket.

Specifications

Type: Articulated tilt and swivel bracket

Usage location: Indoor

Screen size supported: 50 to 105 inches

Load capacity: 165 lb

Max. VESA® standard: 200x100, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 500x300, 400x400, 600x300, 500x400, 400x600, 600x400, 700x400, 800x400, 600x600, 800x500, 800x600, 900x600

Tilt angle: +5° ~ -15°

Swivel angle: +60° ~ -60°

Articulation: Yes

Level adjustment: +3° ~ -3°

Mounting profile: 2.8" ~ 25.1"

Bubble level: Included

Hardware kit: Included

Cable routing: Included

Material: Steel with powder coated finish & plastic

Color: Black

Product dimensions: 25.1 x 38.4 x 24.5 in

Product weight: 19.3 lb

Warranty: One year
