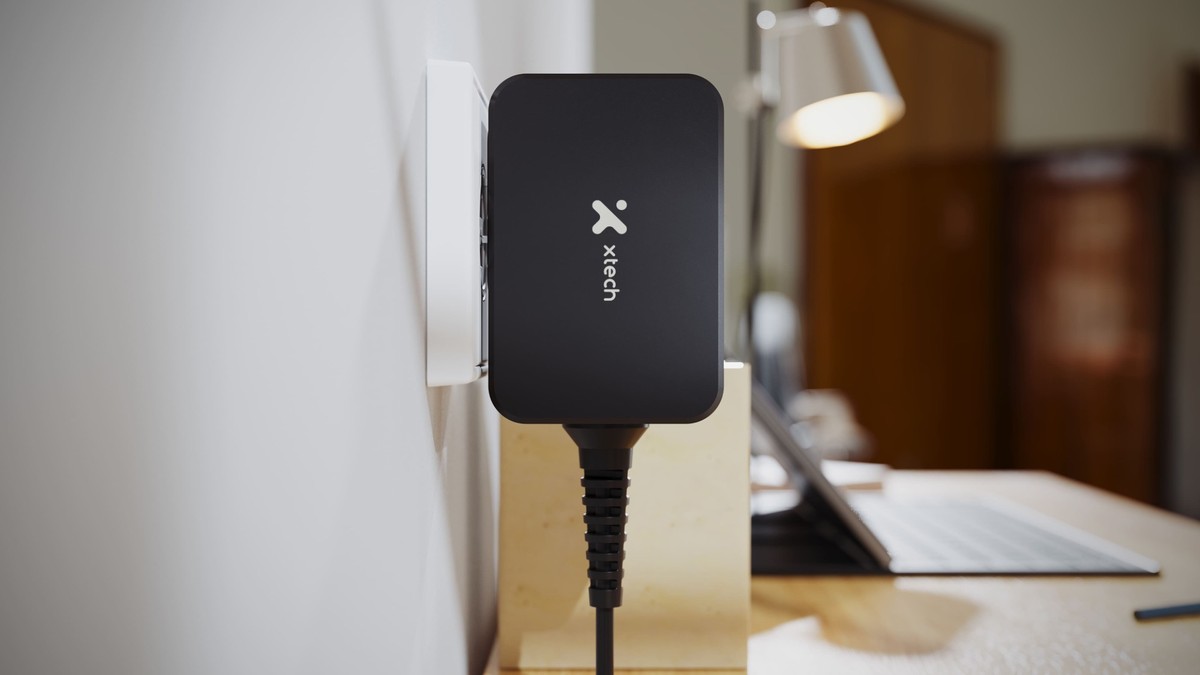

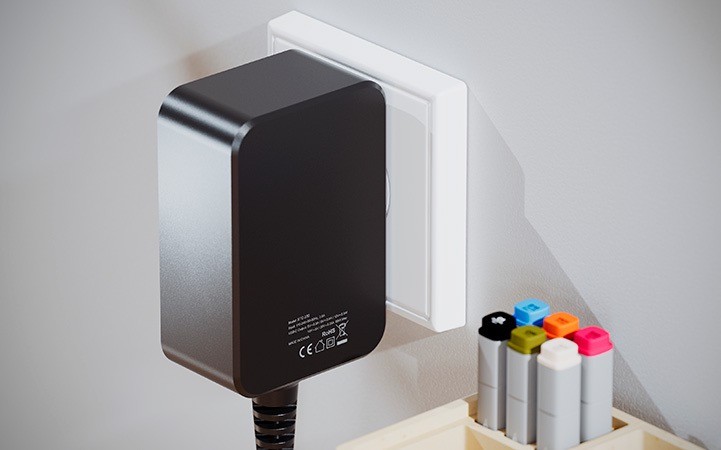

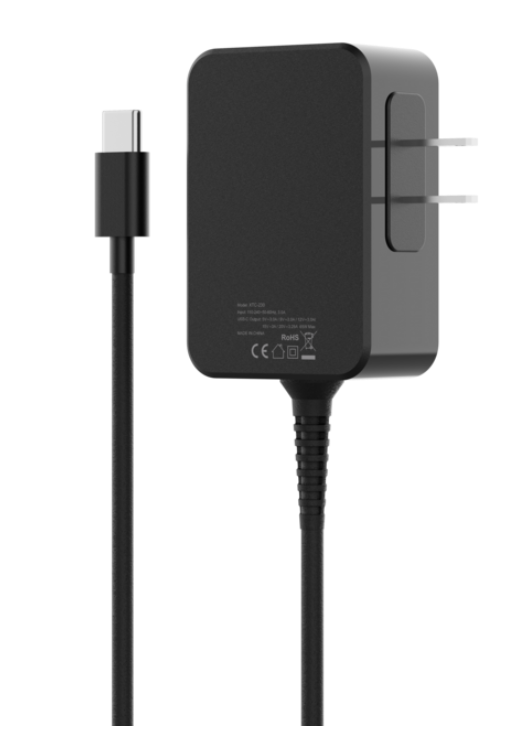

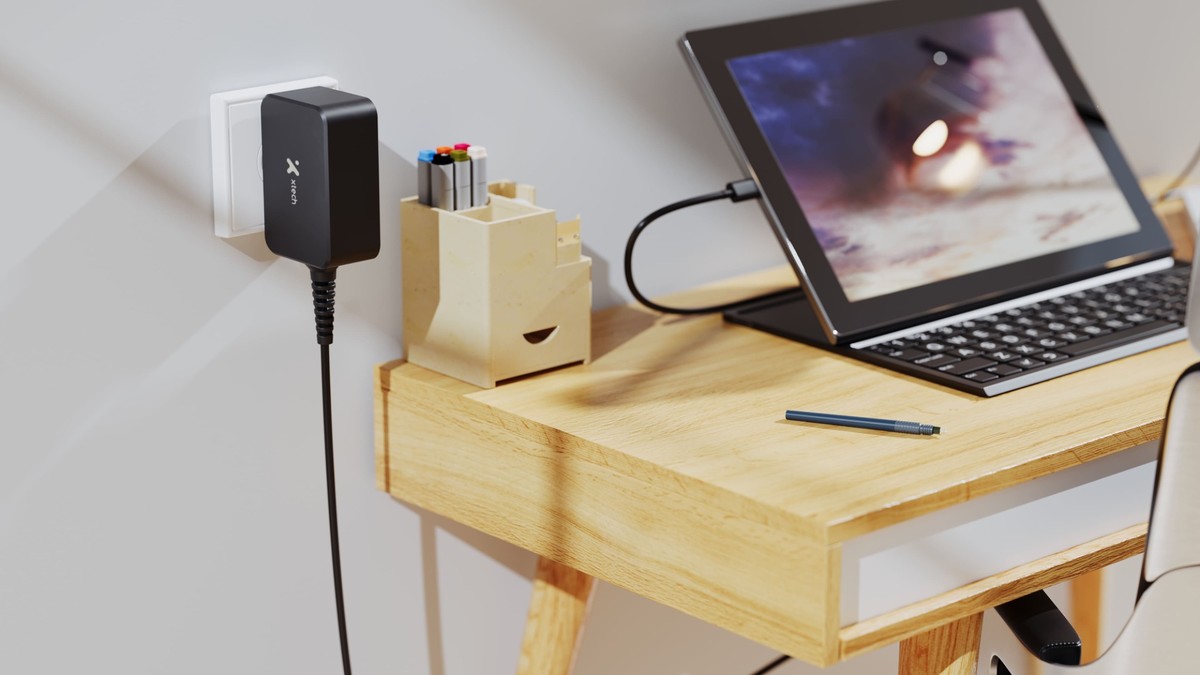

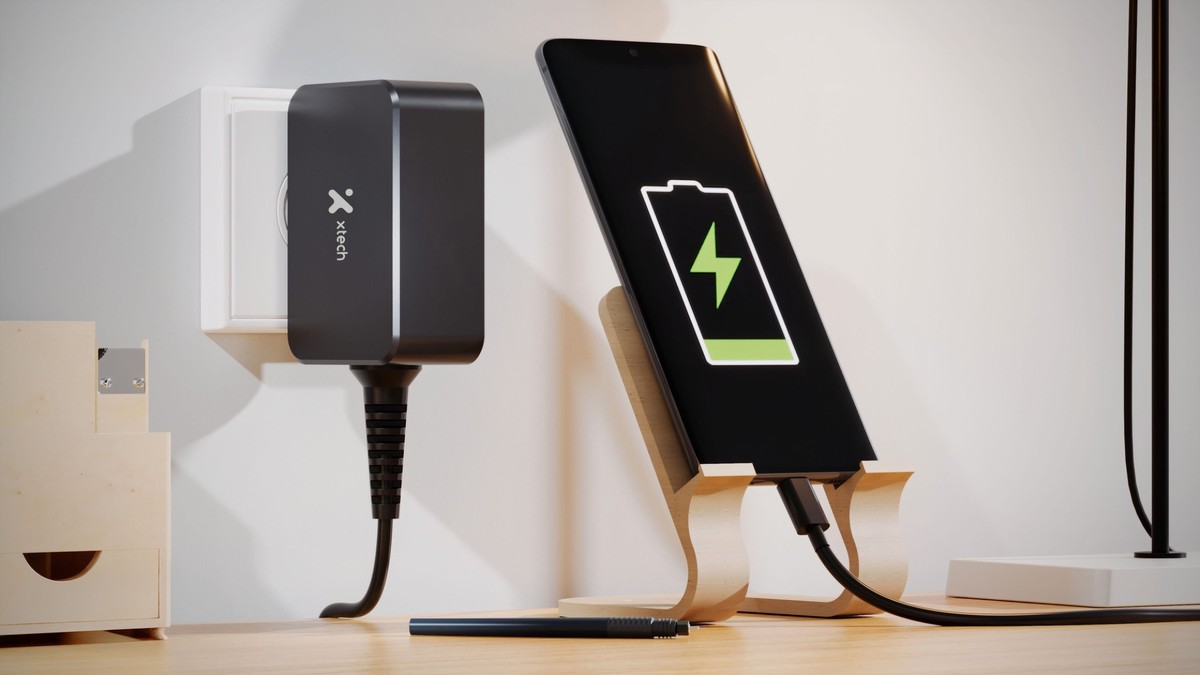

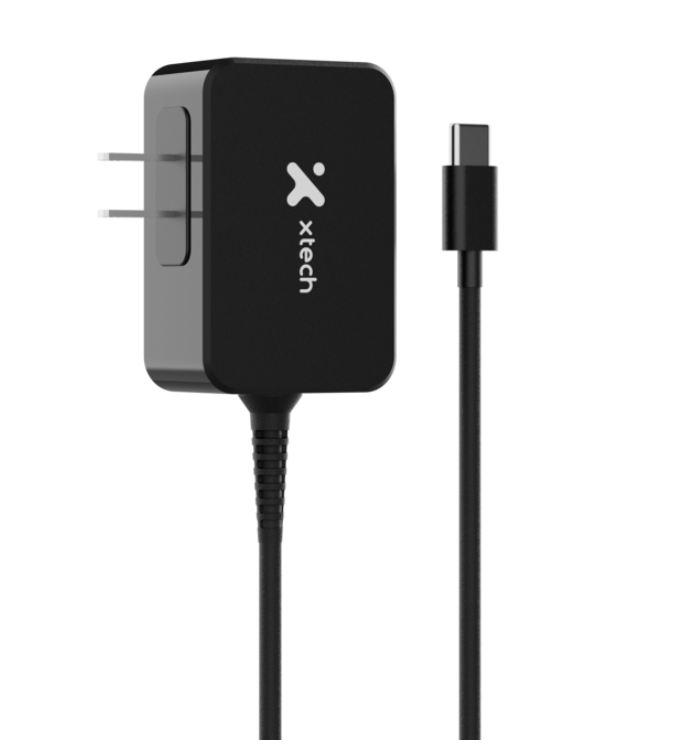

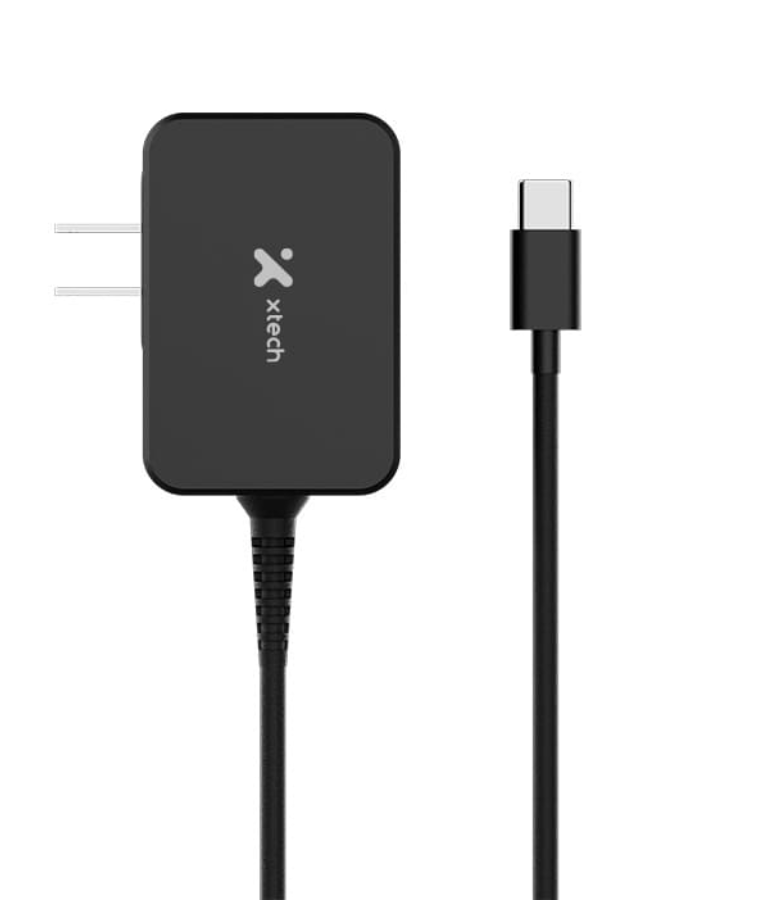

Xtech - 65W GaN USB-C® Power adapter - voltage 110/240VCA Xtech plug NEMA 1-15P 5.9ft XTC-230

65W GaN USB-C® Power adapter

Connector type: USB-C®

Voltage: 110-240 VCA

Length: 5.9 ft

65WGaN USB-C® Power adapter ideal for laptops, tablets, smartphones and other mobile devices. Features NEMA 1-15P plug and a 15.9 ft USB-C® cord.

Wide range of DC output power from 5V at 3A to 20V at 3.25A. Supports an input voltage range of 110 to 240 volts AC, operating at 50-60Hz frequencies.

Enabled with Over Current Protection (OCP), Short Circuit Protection (SCP), and Over Power Protection (OPP) for reliable and safe charging of your most sensitive devices.

Highlights

65W USB-C® Power adapter ideal for laptops, tablets, smartphones and other mobile devices.

Supports an input voltage range of 110 to 240 volts AC, operating at 50-60Hz frequencies.

Wide range of DC output power from 5V at 3A to 20V at 3.25A.

Enabled with Over Current Protection (OCP), Short Circuit Protection (SCP), and Over Power Protection (OPP) for reliable and safe charging of your most sensitive devices.

GaN (Gallium nitride) semiconductor technology for faster charging, higher efficiency and best heat dissipation.

Features NEMA 1-15P plug and a 15.9 ft USB-C® cord.

One-year warranty.

Specifications

Input

Nominal rated voltage: 110-240VCA

Supported voltage: 100-264VA

Rated frequency: 50/60Hz

Tested frequency: 47Hz ~ 63Hz

Current (rated load input): 1.5A

Output

Total power: 65W máx.

DC output power range: 5V/3A, 9V/3A, 12V/3A,1 5V/3A, 20V/3.25A

Line regulation: ±5%

Load regulation: ±5%

Delay timer:

Rise time:

Connector type: USB-C®

Protection: OCP, SCP, OPP

Environment

Operating temperature: 0 ~ 25℃

Storage temperature: 0 ~ 70℃

Relative humidity: 20 ~ 95%

Physical Appearance

Housing: PC

Cord length: 5.91 ft

Dimensions: 2.99 x 2 x 1.14 in

Weight: 0.33 lb.

Additional Information

Warranty: 1 year
