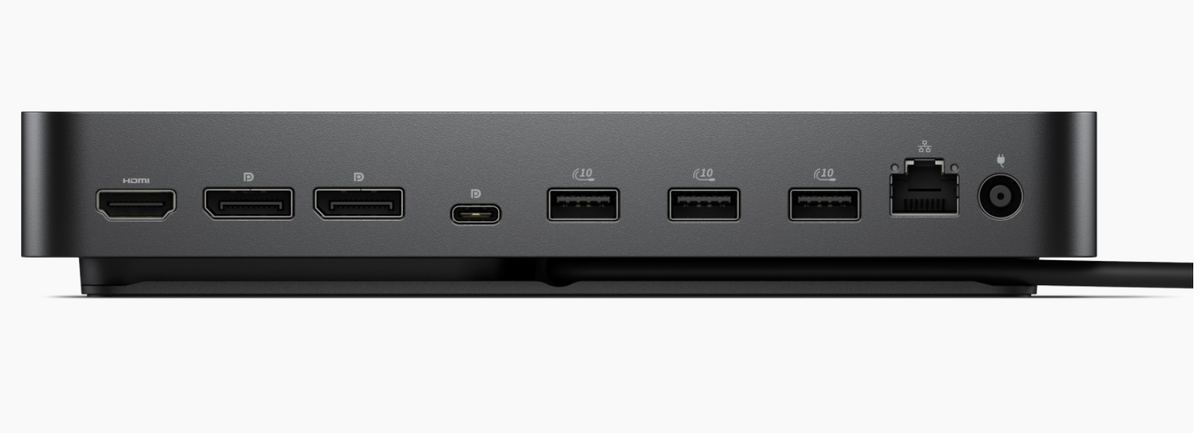

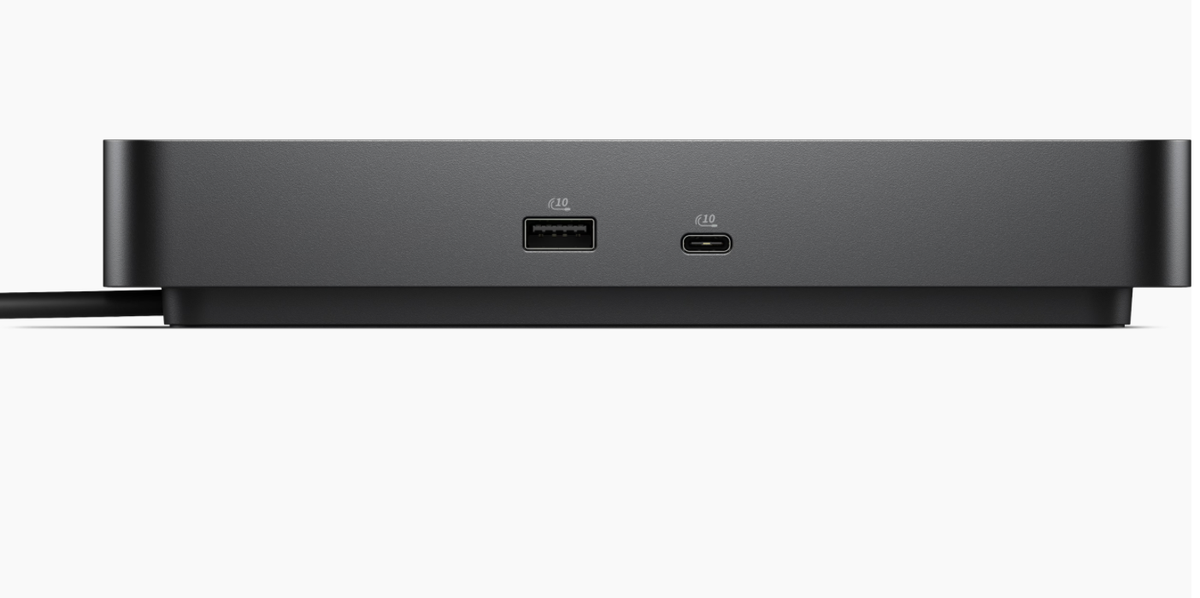

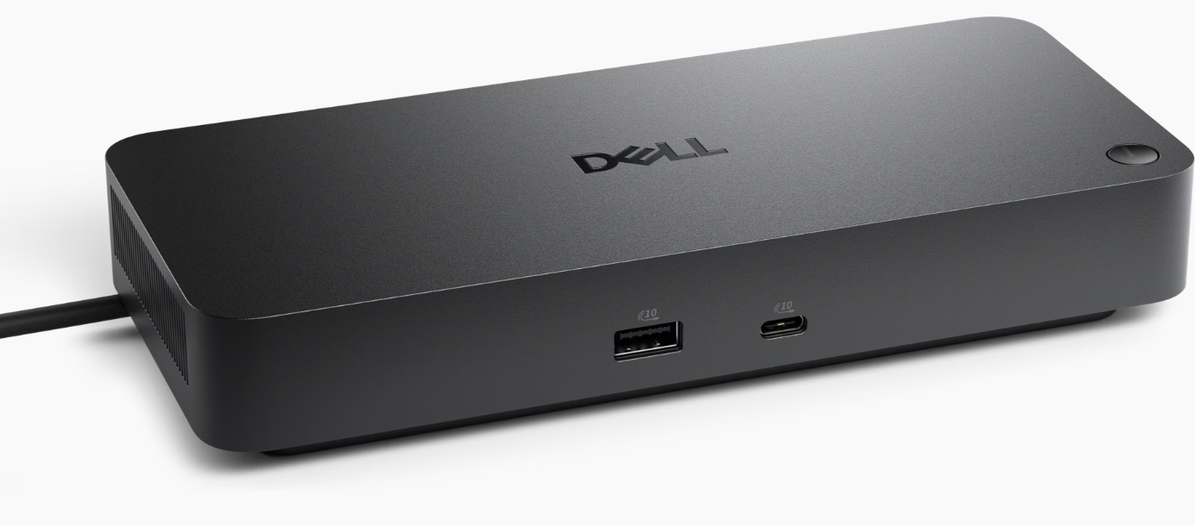

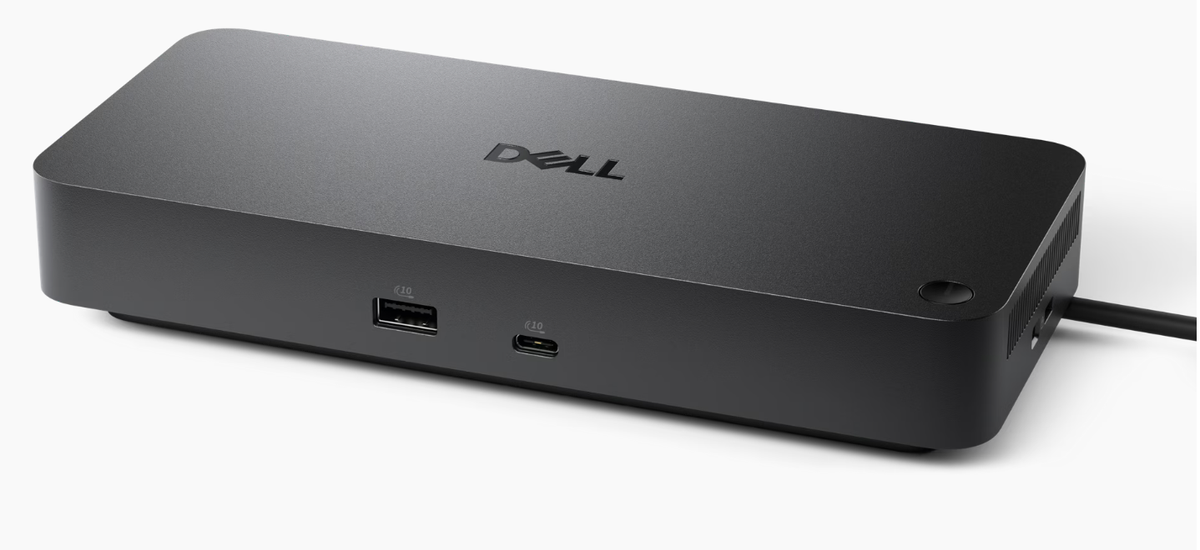

Dell - Docking station - Docking station adapter Dell WD25 2xDP 1xHDMI 1xUSB-C 4xUSB

Boost your productivity with the latest pro dock that offers up to 100W power delivery and a wide variety of connecting options.

Fuel your productivity

Gain the versatility to create your ideal workspace with a dock featuring 6 USB ports, support for 4 displays and driving up to 100W of power delivery to the latest Dell AI PCs for optimal productivity.

More manageable

Keep your dock up to date and work without interruption.

Improved manageability

Manage your dock from the Dell Device Management Console by utilizing Dell Display and Peripheral Manager installed on your PC.

Simplify firmware updates

Reduce IT complexity by deploying a single firmware file across workspaces.

Minimize end-user disruption with silent firmware updates that are executed upon dock disconnection.

Work with confidence

Enhance your docking experience with universally compatible features including MAC Address Pass-Through and Power Button Sync[1], for a better docking experience across brands.

Tech Specs

Technical Information

Connectivity Technology: Wired

Number of Displays Supported: 4

Management Features:

Host PC Management

MAC address pass-through

PXE Boot

Dock Power Button Sync

Wake-On-LAN

WLAN to LAN switch

Kernel Direct Memory Access (DMA) protection

Dock Management Features

Host PC based firmware update

Firmware update on disconnect

Port Disablement

Device Supported: Notebook

Video Resolution

DP1.4 with Display Stream Compression

4 x WQHD (3440 x 1440) @ 60Hz

3 x WQHD (3440 x 1440) @ 60Hz

2 x 5K (5120 x 2160) @ 60Hz

1 x 6K (6144 x 3456) @ 60Hz

DP1.4 without Display Stream Compression

Up to:

4 x HD (1280x720) @ 60Hz

3 x FHD (1920x1080) @ 60Hz

2 x QHD (2560x1440) @ 60Hz

1 x 4K (3840 x 2160) @ 60Hz

Network & Communication

Ethernet Technology: RJ45 Ethernet port, 2.5GbE

Interfaces/Ports

Interfaces

Video interfaces

2 x DP1.4

1 x HDMI 2.1

1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4

USB Ports (Data Only)

4 x USB-A 3.2 Gen 2 (10 Gbps)

1 x USB-C 3.2 Gen 2 (10 Gbps)

USB Power Delivery

100W (Dell systems)

96W (non-Dell systems)

USB Ports (Power)

4 x USB-A 3.2 Gen 2 (4.5W each)

1 x USB-C 3.2 Gen 2 (15W)

1 x USB-C Multi-function DisplayPort (7.5W)

All deliver power with or without PC

Software

Operating System Supported

Windows 10

Windows 11

Ubuntu

Red Hat Enterprise Linux

ChromeOS

Power Description

Maximum Power Supply Wattage: 130W

Physical Characteristics

Height: 8.07"

Width: 3.54"

Depth: 1.39"

Weight (Approximate): 1.21 lb

Miscellaneous

Package Contents

Docking Station

Power Adapter and Power Cord

Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)

Kensington Security Slot: Yes

Warranty

Limited Warranty: 3 Year

Additional Warranty Information

3-Year Limited Hardware Warranty with Advanced Exchange

Additional 4- & 5-year warranty optional
